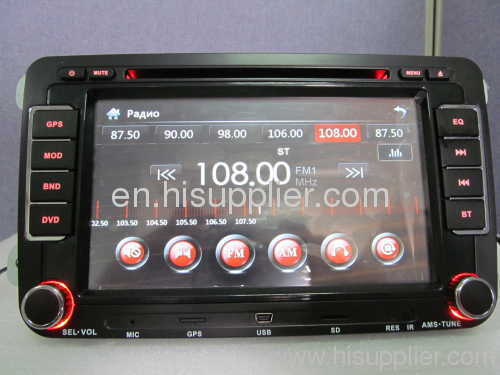

VW/Skoda/Seat DVD Player GPS from China manufacturer

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ALC-0831LV

Production Capacity: 20000pcs

Delivery Date: 3-8 days

Certification: CE

Car Make: VW/Skoda/Seat

Net weight: 4.0kg

Placement: Dashboard

Combination: Bluetooth-Enabled, Built-in...

Power supply: 12V

Means of Transport: Ocean,Air

Packing: Chinese English Gift Packin...

Type: Others

Brand Name: ALYTA

Screen Size: 7.0"

Gross weight: 5.5kg

Place of Origin: China ,Guangdong

Brand name: ALYTA

1. 7" Digital Screen;
2. iPod/TV/Bluetooth/GPS/Touch screen/Radio etc
3. PIP/6 Visual Disc
4. dvbt/isdbt optional

VW Car DVD GPS Sysem 3G USB SD Radio FM/AM/RDS BT Ipod MP3 Touchscreen

New Function:
1. high resolution digital TFT LCD Monitor, Pixels: 800*3(RGB)*480
2. Wince 6.0 system, support multi-language
3. PIP --- picture in picture function
4. Picture capture from photo or MP4 to be DVD starting logo
5. 6 visual Disc for your favorite songs and movie
6. Unique 3D flash graphical user interface

General Function:
1. Beautiful OSD menu
2. Display size: 16: 9 TFT High Definition LCD
3. DVD, VCD, CD, MP3, MPEG, CD-R, WMA, JPEG
4. USB/SD: WMV, AVI, MPEG, MP3, MP4, JPEG
5. 32 stations of AM/FM
6. Bluetooth, iPod, Aux, GPS, day-night mode, TV
7. Built in DVBT is optional
8. Two zone switch (DVD, USB, SD, TV, radio, camera etc)
9. steering wheel control
10. Special/Universal Camera optional
11. Built in GPS

Specification List	Operative System	WIN CE 6.0
	MUC	Panasonic MCU-MN101EF51A
	CPU /RAM /ROM	SiRFatlasIV ARM11 533MHz /128M
	DECODE /DVD memory	SPHE8202VGQ /HY57V281620ETP
	Screen /LCD Driver	TM062RDH03;HLY070ML;HSD080IDW1/070A/080A /TW8816
	Power Amplifier IC	TDA7384
	DVD Loader /Pick up	FORYOU /HITACHI 1200W
	Radio Module	NXP6621
	Bluetooth Module	CSR BC5
	Analog TV Tuner	TDQ-6AL
	Digital TV Module
	GPS Module	SIRF AT840
	DSP sound processing Chip	BD37534
Display	7 inch 16:9 LCD; Touch Screen; Resolution:800480; Dynamic 3D* Background picture changeable Function icons removeable
Radio	AM Frequency Range:522-1620 (Europe), 530-1710 (America),522-1620 (Russia), FM Tuning Range:87.5-108 (Europe), 87.5-107.9 (America),65.0-108.0 (Russia) With RDS
DVD	Loading Time: CD/MP3 10s/15s Media type:DIVX/DVD/DVD-RS/DVD+RS/DVD-RW/VCD/CD-R/CD-RW/MP3/MP4/MP5/RMVB/WMA/AVI Signal-To-Noise Ratio :>85db
Media USB/SD	Video formats supported (up tp 1080p):WMV/ MPEG4/ MPEG2/ AVI(DIV-X)/ AVI(X-VID)/ VCD Audio formats supported:MP3/ WMA/ AAC Image formats supported:JPG
Bluetooth	Version: V2.1 Phone book; Calling name display Received Call;Dialled Call;Missed Call Built-in/External microphone
TV tuner	Analog TV by default, digital TV (DVBT/ISDB/ATSC) is optional
GPS	Operating system	WinCE 6.0
	Main Frequency	533MHz
	Chip	SIRF Atlas-IV
	Store Space	128M
	Navigation Software Storage	support SD/MMC/SDHC (4GB~32GB)
	Support Map	IGO8,TOMTOM,ROUTE66,GARMIN,SYGIC,PAPAGO,Polnav,Support 3D Map
	Support Audio Type	WMA9, MP3, WAV
	Support Video Type	wmv, avi
	Card Supported	Micro SD card/SD card
	GPS Resolution Output	800*480
Language	UI Language:27 countries;English, Francais, Espanol, Italiano, Russian, Deutsch, Arabic, Chinese GPS Console Language:English,Deutsch, España, Italiano, Française, Português, Russian, Chinese simplified, Chinese traditional GPS Voice Guidance Language: Support map language
Connection	Video Input: 2 way Video Output: 2 way Audio Input: 2 way Audio Output: 4. 1 channel Subwoofer Output USB/SD (MAX 32GB or <1500 files) Ipod Control
Additional Features	V-6 Disc CDC Memory Power on Car Logo selectable Steering wheel control Reversing camera video display CANBUS Optional DSP sound processing
	Gift box	1unit/box G.W: mm(LWH)
	Carton box	unit/box G.W: mm(LWH)
	Operation temperature	-10℃-50℃
	Storage temperature	-20℃~75℃
	Package parts	1 unit car DVD Case for Detachable faceplate Remote control GPS antenna(3m wire) Digital TV antenna(optional) Metal fasteners and screws iPod and USB cable User manual
